TP-Link Switch TL-SG3428XF- JetStream 24-Port SFP L2+ Managed Switch with 4 10GE SFP+ Slots-SDN Integrated, Cloud Access & Omada App

Original price was: AED 2,699.Current price is: AED 2,250.

10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots
Gigabit Fiber Speeds: 20× Gigabit SFP slots 4× Gigabit Combo SFP/RJ45 ports
Capacity: 128 Gbps switching capacity
Power: Two power supplies backing each other up
Control: Centralized cloud management via the web or the Omada app^†
Standalone: management via web, CLI, SNMP, and RMON
Static Routing: helps route internal traffic for higher efficiency
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping
ERPS supports rapid protection and recovery in a ring topology

About this item:

High-Speed 10G SFP+ Connectivity – Provides ultra-fast fiber uplinks for high-bandwidth enterprise networks, data centers, and core switching environments.
Powerful Switching Performance – Delivers stable and efficient data transfer to handle demanding workloads such as virtualization, cloud computing, and storage traffic.
Advanced Layer 2+ Features – Supports VLAN, QoS, link aggregation, and IGMP Snooping for better traffic control and optimized network performance.
Flexible Management Options – Offers Web UI, CLI, SNMP, and RMON support for complete control and easy network administration.
Centralized Network Management – Easily integrate with cloud or controller-based systems for simplified monitoring and configuration.
Enhanced Security Functions – Includes ACL, port security, storm control, and authentication features to protect the network from unauthorized access.
Efficient Traffic Optimization – Improves internal data flow with static routing and intelligent switching capabilities for better network efficiency.
Reliable Network Stability – Designed for consistent performance in enterprise environments with minimal downtime and high reliability.
Durable Metal Housing Design – Built with a strong metal enclosure for long-term use and professional-grade deployment.
Rack-Mountable Enterprise Design – Easily fits into standard network racks for organized installation in server rooms and data centers.

SKU: 1019

Description
Review

Description for Switch TL-SG3428XF (24-port SFP L2 +managed Switch)

The TP-Link Switch TL-SG3428XF is a powerful JetStream L2+ Managed Switch designed to meet the connectivity and performance demands of modern enterprise networks. Featuring 20 Gigabit SFP ports, 4 Gigabit Combo SFP/RJ45 ports, and 4 dedicated 10G SFP+ uplink ports, it provides exceptional flexibility for fiber-based network deployments. Whether used in business campuses, data centers, ISP environments, or large-scale corporate infrastructures, the switch delivers reliable performance, advanced traffic management, and enterprise-grade security.

Integrated with the Omada Software Defined Networking (SDN) platform, the Switch TL-SG3428XF enables centralized cloud management, simplified monitoring, and streamlined network administration. Its extensive Layer 2+ capabilities, advanced routing functions, QoS controls, VLAN support, and IPv6 readiness make it an ideal solution for organizations looking to build scalable, secure, and future-ready networks.

Hardware Features

Feature	Details

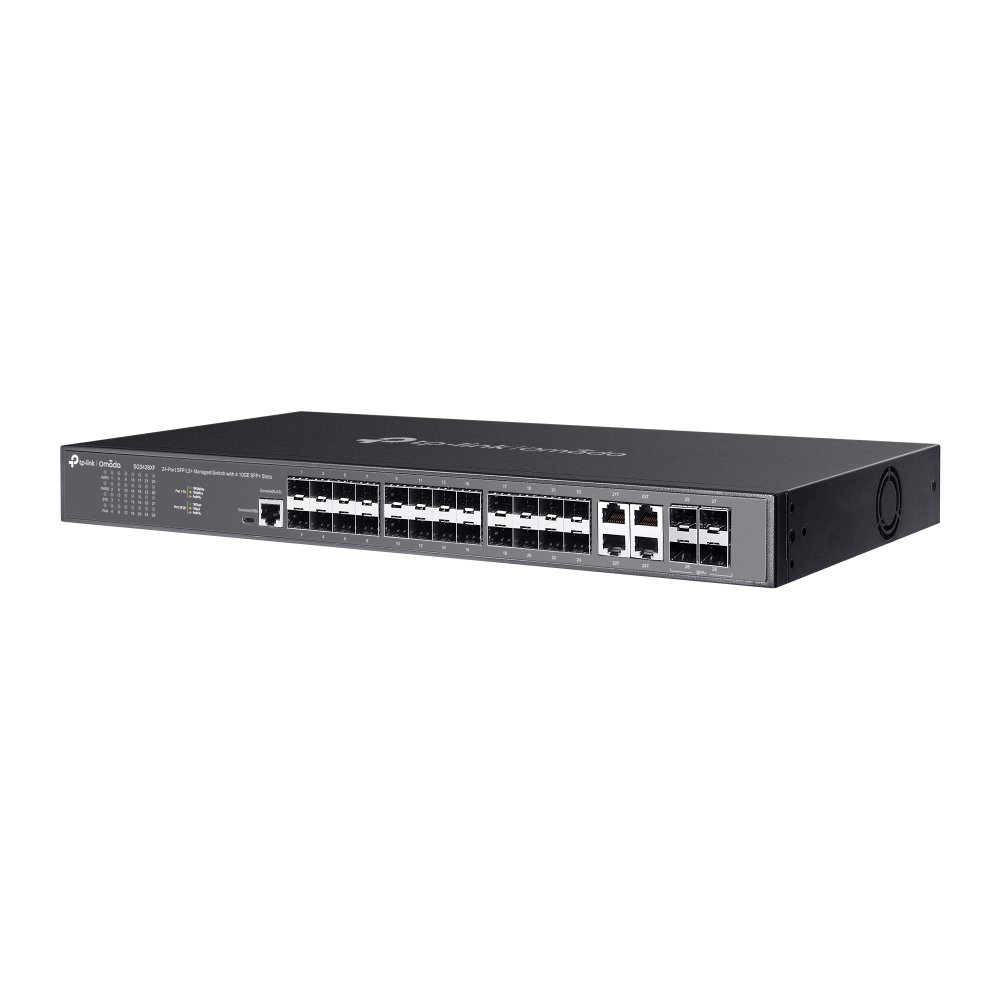

Interface	• 20x Gigabit SFP Slots • 4x Gigabit Combo SFP/RJ45 Ports • 4x 10G SFP+ Slots • 1x RJ45 Console Port • 1x Micro-USB Console Port
Fan Quantity	•1 Fan

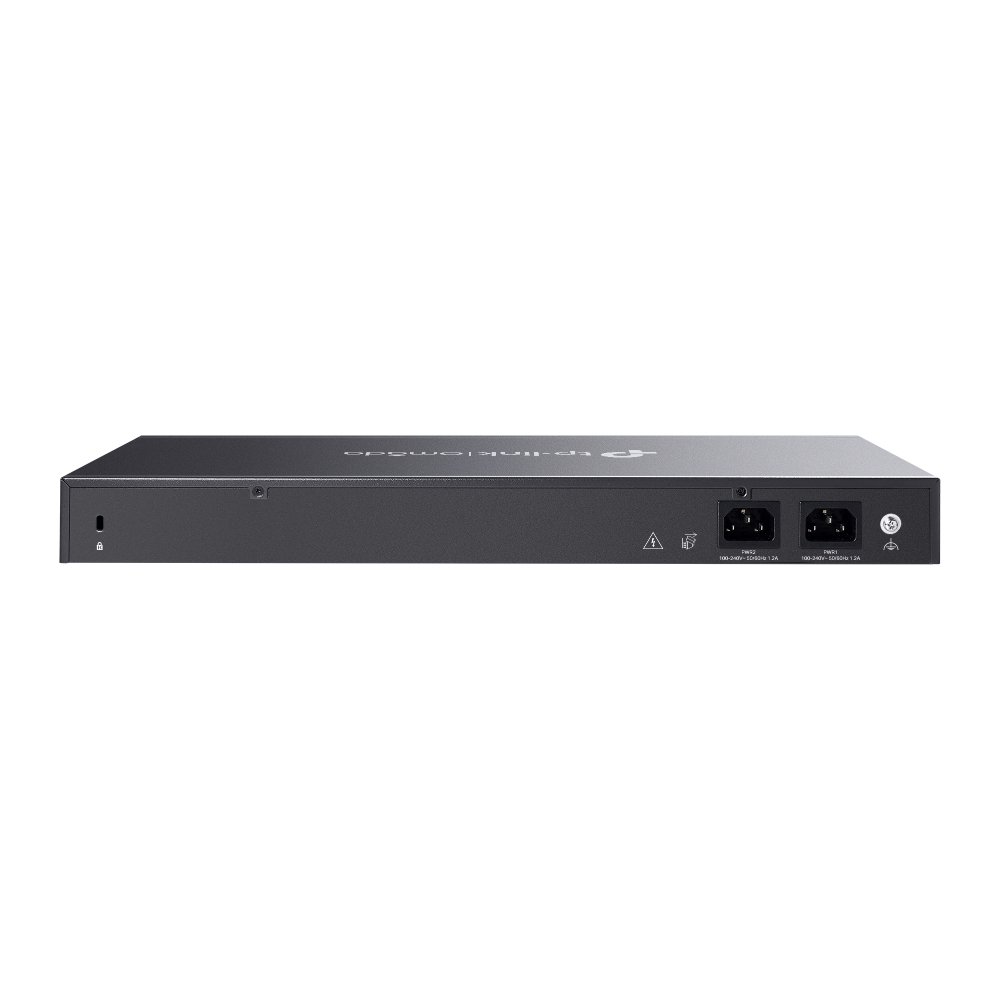

Power Supply	• dual redundant power supplies • 100-240V AC, 50/60Hz
Dimensions ( W x D x H )	• 17.3×8.7×1.7 in (440x220x44 mm)
Mounting	• Rack Mountable
Max. Power Consumption	• 35.7 W (110 V/60 Hz)
Max. Heat Dissipation	• 121.81 BTU/hr (110 V/60 Hz)

Performance

Feature	Details
Switching Capacity	•128Gbps
Packet Forwarding Rate	•95.23Mpps
Mac address table	• 16K entries
packet buffer memory	• 12Mbit
Jumbo Frame	• 9kb

Software Features

Quality of Service (QoS)

QoS features help prioritize network traffic and improve overall performance.

Feature	Details
Quality of Service	• 8 priority queues • 802.1p CoS/DSCP priority • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR • Bandwidth Control: Port/Flow-based Rating Limiting • Smoother Performance • Action for Flows: QoS Remark (802.1P Remark, DSCP Remark)

L2 and L2+ Features

Advanced Layer 2 and Layer 2+ capabilities enhance traffic management and network efficiency.

Feature	Details
L2 and L2+ Features	• 128 IP Interfaces: Support IPv4/IPv6 Interface • Static Routing: 48 IPv4/IPv6 Static Routes • Static ARP: 128 Static Entries • 512 ARP Entries • Proxy ARP • Gratuitous ARP • DHCP Server • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay • DHCP L2 Relay • Link Aggregation • Spanning Tree Protocol • Loopback Detection • 802.3x Flow Control • Mirroring

L2 Multicast

Multicast management features optimize the delivery of group-based traffic across the network.

Feature	Details
L2 Multicast	• Supports 1000 (IPv4, IPv6) IGMP Groups • IGMP Snooping • IGMP Authentication • Multicast VLAN Registration (MVR) • MLD Snooping • Multicast Filtering: 256 Profiles and 16 Entries per Profile

Advanced Features

Advanced management tools simplify deployment, monitoring, and maintenance tasks.

Feature	Details
Advanced Features	• Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule ISP Features: • L2PT (Layer 2 Protocol Tunneling) • Device Link Detect Protocol (DLDP) • PPPoE ID Insertion • ERPS • 802.3ah Ethernet Link OAM • DDM • sFlow

VLAN Features

Comprehensive VLAN support improves network segmentation and traffic isolation.

Feature	Details
VLAN	• VLAN Group: Max 4K VLAN Groups • 802.1q Tagged VLAN • MAC VLAN: 30 Entries • Protocol VLAN: Protocol Template 16, Protocol VLAN 16 • Private VLAN • GVRP • VLAN VPN: VLAN Mapping, VLAN Replace • Voice VLAN

Access Control List (ACL)

ACL features provide granular traffic filtering and access management capabilities.

Feature	Details
Access Control List	• Time-based ACL • MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type • IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS • Combined ACL • Packet Content ACL • IPv6 ACL • Policy: Mirroring, Redirect, Rate Limit, QoS Remark • ACL Applies to Port/VLAN

Security Features

Built-in security functions help protect network resources from unauthorized access and threats.

Feature	Details
Security	• IP-MAC-Port Binding – 512 Entries – DHCP Snooping – ARP Inspection – IPv4 Source Guard • IPv6-MAC-Port Binding – 512 Entries – DHCPv6 Snooping – ND Detection – ND Snooping – IPv6 Source Guard • DoS Defend • Static/Dynamic Port Security: Up to 64 MAC Addresses per Port • Broadcast/Multicast/Unicast Storm Control: kbps/ratio Control Mode • 802.1X Authentication – Port-Based Authentication – MAC-Based Authentication – VLAN Assignment – MAB – Guest VLAN – Radius Authentication and Accountability Support • AAA (Including TACACS+) • Port Isolation • Secure Web Management Through HTTPS with SSLv3/TLS 1.2 • Secure CLI Management with SSHv1/SSHv2 • IP/Port/MAC-Based Access Control

Feature

Details

Security

• IP-MAC-Port Binding
– 512 Entries
– DHCP Snooping
– ARP Inspection
– IPv4 Source Guard
• IPv6-MAC-Port Binding
– 512 Entries
– DHCPv6 Snooping
– ND Detection
– ND Snooping
– IPv6 Source Guard
• DoS Defend
• Static/Dynamic Port Security: Up to 64 MAC Addresses per Port
• Broadcast/Multicast/Unicast Storm Control: kbps/ratio Control Mode
• 802.1X Authentication
– Port-Based Authentication
– MAC-Based Authentication
– VLAN Assignment
– MAB
– Guest VLAN
– Radius Authentication and Accountability Support
• AAA (Including TACACS+)
• Port Isolation
• Secure Web Management Through HTTPS with SSLv3/TLS 1.2
• Secure CLI Management with SSHv1/SSHv2
• IP/Port/MAC-Based Access Control

IPv6 Features

Full IPv6 support enables seamless integration with modern network infrastructures.

Feature	Details
IPv6	• IPv6 Dual IPv4/IPv6 • Multicast Listener Discovery (MLD) Snooping • IPv6 ACL • IPv6 Interface • Static IPv6 Routing • IPv6 Neighbor Discovery (ND) • Path Maximum Transmission Unit (MTU) Discovery • Internet Control Message Protocol (ICMP) Version 6 • TCPv6/UDPv6 • IPv6 Applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, HTTP/HTTPS, IPv6 TFTP

Feature

Details

IPv6

• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 Neighbor Discovery (ND)
• Path Maximum Transmission Unit (MTU) Discovery
• Internet Control Message Protocol (ICMP) Version 6
• TCPv6/UDPv6
• IPv6 Applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, HTTP/HTTPS, IPv6 TFTP

Management Information Bases (MIBs)

MIB support enables efficient network monitoring and SNMP-based management.

Feature	Details
MIBs	• MIB II (RFC1213) • Interface MIB (RFC2233) • Ethernet Interface MIB (RFC1643) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RMON MIB (RFC2819) • RMON2 MIB (RFC2021) • Radius Accounting Client MIB (RFC2620) • Radius Authentication Client MIB (RFC2618) • Remote Ping, Traceroute MIB (RFC2925) • Support TP-Link Private MIB

Management Features

Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Web-based GUI • Command Line Interface (CLI) through the console port, telnet • SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups) • SDM Template • DHCP/BOOTP Client • 802.1ab LLDP/LLDP-MED • DHCP AutoInstall • Dual Image, Dual Configuration • CPU Monitoring • Cable Diagnostics • EEE • Password Recovery • SNTP • System Log

Others

Certification	CE, FCC, RoHS

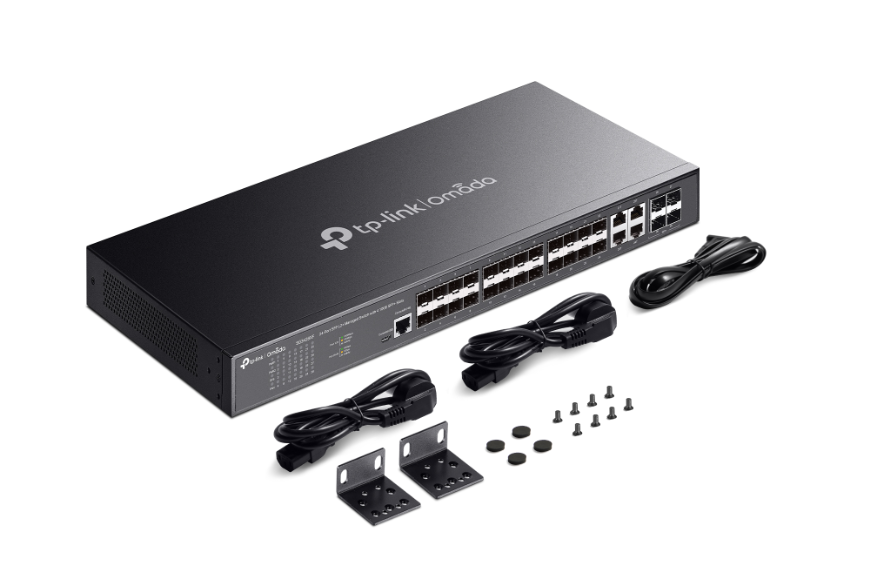

Package Content	• SG3428XF Switch • Power Cord • Quick Installation Guide • Rackmount Kit • Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	• Operating Temperature: 0–45 ℃ (32–113 ℉); • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Conclusion:

The TP-Link TL-SG3428XF combines high-speed fiber connectivity, advanced Layer 2+ management features, and comprehensive security capabilities into a single enterprise-class switching solution. With support for 10G uplinks, intelligent traffic prioritization, extensive VLAN options, and centralized Omada management, it offers the performance and flexibility required for growing business networks.

Designed for reliability and scalability, the TL-SG3428XF helps organizations optimize network efficiency while simplifying day-to-day management tasks. Whether deployed as an aggregation switch, distribution switch, or part of a larger enterprise infrastructure, it provides a dependable foundation for supporting current network requirements and future expansion.
