TP-Link Switch TL-SX3016F | 16 Port 10G SFP+ Enterprise Level Switch | L2+ Smart Managed | Omada SDN Integrated | IPv6 | Static Routing | L2/L3/L4 QoS, IGMP & LAG | Limited Lifetime Protection

Original price was: AED 2,599.Current price is: AED 1,999.

Ports: 16 × 10G SFP+ Slots
Switching Capacity: 320 Gbps
Power Redundancy: Dual Power Supply Support
Cloud Management: Web & Omada App
Management: Web, CLI, SNMP, RMON
Routing: Static Routing
Features: VLAN, ACL, QoS, IGMP Snooping, OAM, DDM
Protection: ERPS Ring Recovery
Construction: Metal Casing
Mounting: Rack-Mountable Design

About this item :

16 High-Speed 10G SFP+ Ports – Supports multiple fiber connections with ultra-fast 10G performance, ideal for growing business and enterprise networks.
320 Gbps Switching Capacity – Delivers high-speed, seamless data transfer for demanding network environments.
Dual Redundant Power Supplies – Ensures maximum reliability and continuous operation with built-in power backup support.
Cloud-Based Management – Easily monitor and manage your network remotely through the web interface or Omada App.
Flexible Management Options – Supports Web UI, CLI, SNMP, and RMON for advanced network administration and control.
Static Routing Support – Optimizes internal traffic flow for improved network efficiency and performance.
Advanced Security & Network Features – Includes VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM for enhanced control and protection.
Rapid Recovery with ERPS – Provides fast network protection and recovery in ring topology deployments, minimizing downtime.
Durable Metal Housing – Built with a robust metal enclosure and rack-mountable design for professional installations.
Ideal for Enterprise & Business Networks – Combines high performance, scalability, and reliability for modern networking needs.

SKU: 1020

Description
Review

Description For TP-Link Switch TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch

The TP-Link Switch TL-SX3016F JetStream 16-Port 10GE SFP+ L2+ Managed Switch is a high-performance aggregation switch designed for enterprise networks, data centers, ISPs, and organizations that require ultra-fast 10 Gigabit fiber connectivity. Equipped with sixteen dedicated 10G SFP+ ports and a non-blocking switching capacity of up to 320 Gbps, the TL-SX3016F provides exceptional bandwidth and scalability for handling large volumes of network traffic while maintaining reliable performance.

Built to support modern high-speed networking environments, the switch offers advanced Layer 2+ features including static routing, VLAN management, link aggregation, QoS, multicast optimization, and comprehensive IPv6 support. These capabilities enable businesses to build efficient, secure, and scalable network infrastructures capable of supporting bandwidth-intensive applications such as virtualization, video surveillance, cloud services, NAS storage, and Enterprise Network Switch communications.

Software Defined Networking:

The TL-SX3016F integrates seamlessly with the Omada Software Defined Networking (SDN) platform, allowing centralized cloud-based management, remote monitoring, and simplified network administration through a single interface. Network administrators can efficiently manage switches, access points, and routers while maintaining complete visibility across the entire infrastructure.

Enterprise-grade protection:

Security remains a key strength of the Switch TL-SX3016F. Enterprise-grade protection features such as IP-MAC-Port Binding, Access Control Lists (ACLs), Port Security, DHCP Snooping, Storm Control, and 802.1X Authentication help safeguard network resources against unauthorized access and potential threats. These advanced security mechanisms make the switch suitable for mission-critical business environments where reliability and data protection are essential.

Hardware Features

High-Speed Network Interfaces

Interface Type	Details

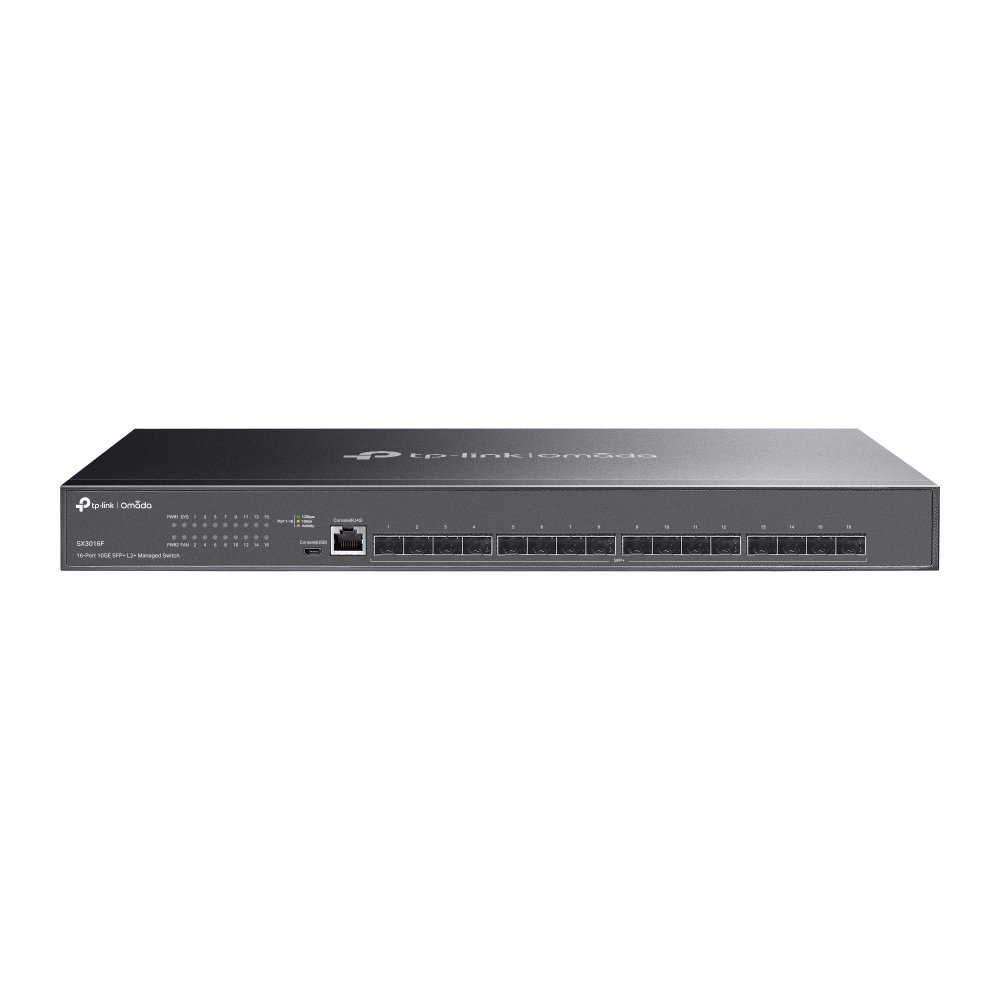

Network Interfaces	16× 10G SFP+ Slots
Management Ports	1× RJ45 Console Port, 1× Micro-USB Console Port

Power and Cooling System

Feature	Details

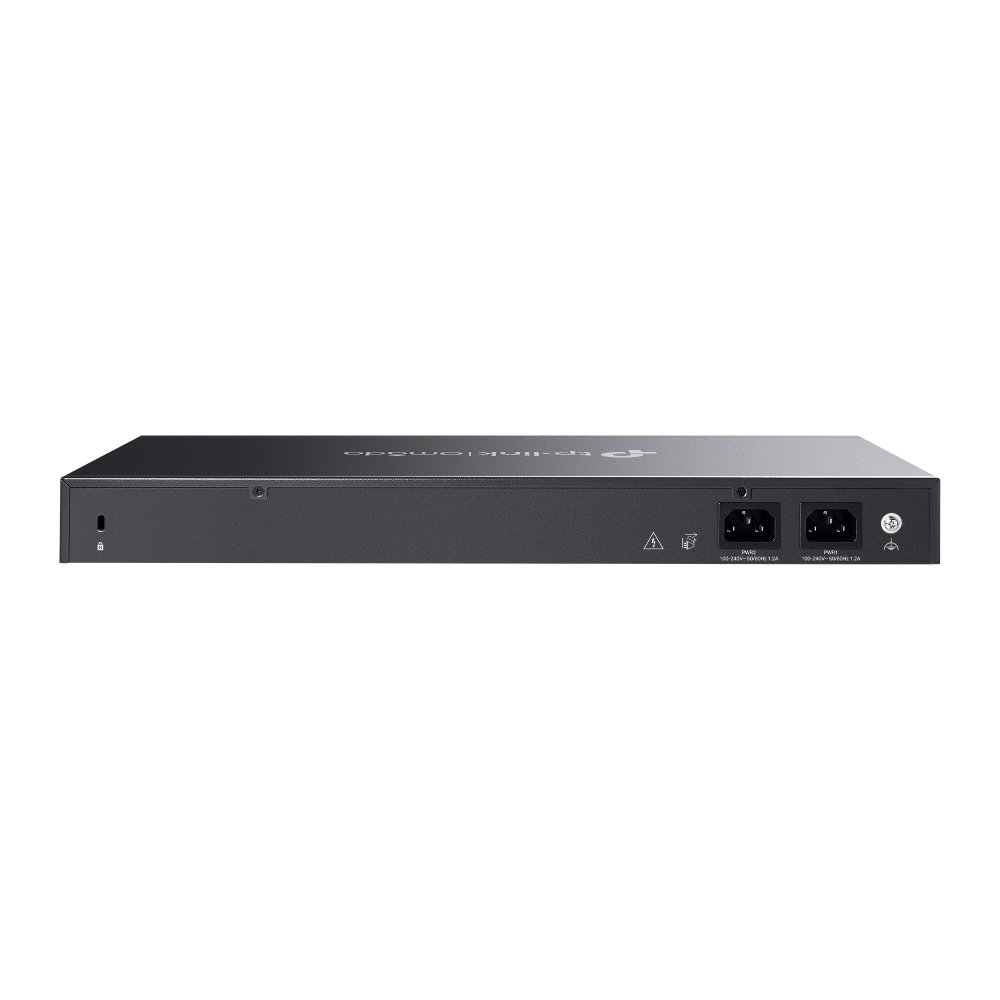

Power Supply	Dual Redundant Power Supplies, 100–240 V AC, 50/60 Hz
Fan Quantity	1

Physical Design

Physical Feature	Details

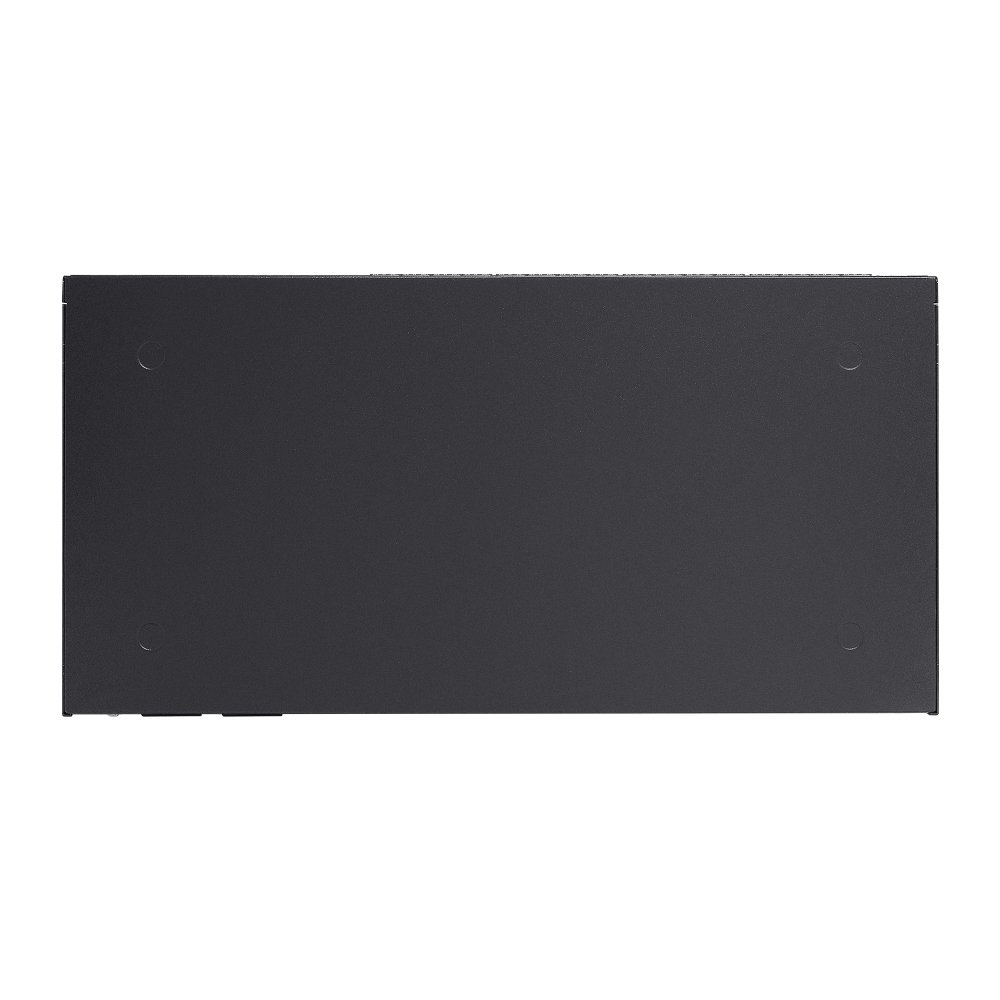

Dimensions (W × D × H)	17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Mounting	Rack Mountable
Physical Security Lock	Supported (√)

Power Efficiency

Power Specification	Details
Maximum Power Consumption	32.74 W (220 V / 50 Hz)
Maximum Heat Dissipation	111.71 BTU/hr (220 V / 50 Hz)

Performance Features

High-Speed Switching Performance

Performance Metric	Details
Switching Capacity	320 Gbps
Packet Forwarding Rate	238.08 Mpps

Traffic Management Resources

Resource	Details
MAC Address Table	32K Entries
Packet Buffer Memory	24 Mbit

Jumbo Frame Support

Feature	Details
Jumbo Frame Support	9 KB

Software Features

Quality of Service (QoS)

QoS Feature	Details
Priority Queues	8 Priority Queues
Traffic Prioritization	802.1p CoS / DSCP Priority
Queue Scheduling	SP, WRR, SP+WRR
Bandwidth Control	Port/Flow-Based Rate Limiting
QoS Actions	802.1P Remark, DSCP Remark

L2 and L2+ Features

L2/L2+ Feature	Details
IP Interfaces	128 IPv4/IPv6 Interfaces
Static Routing	48 IPv4/IPv6 Static Routes
ARP Entries	512 ARP Entries, 128 Static ARP Entries
DHCP Features	DHCP Server, DHCP Relay, DHCP VLAN Relay, DHCP L2 Relay
Network Functions	Link Aggregation, STP, Loopback Detection, Flow Control, Port Mirroring

L2 Multicast Features

Multicast Feature	Details
IGMP Groups	1000 IPv4/IPv6 Groups
IGMP Support	IGMP Snooping, IGMP Authentication
MLD Support	MLD Snooping
MVR	Multicast VLAN Registration
Multicast Filtering	256 Profiles, 16 Entries per Profile

Advanced Management Features

Advanced Feature	Details
Device Management	Automatic Device Discovery, Unified Configuration
Batch Operations	Batch Configuration, Batch Firmware Upgrade
Monitoring	Intelligent Network Monitoring, Event Warnings
Maintenance	Reboot Scheduling

ISP Features

ISP Feature	Details
Protocol Support	L2PT, DLDP, PPPoE ID Insertion
Network Protection	ERPS
Monitoring & Diagnostics	802.3ah OAM, DDM, sFlow

VLAN Features

VLAN Feature	Details
VLAN Groups	Up to 4K VLAN Groups
VLAN Types	802.1Q Tagged VLAN, MAC VLAN, Protocol VLAN, Private VLAN
QinQ Support	Port-Based QinQ, Selective QinQ
Additional Features	GVRP, Voice VLAN

Access Control Lists (ACL)

ACL Feature	Details
ACL Types	MAC ACL, IP ACL, IPv6 ACL, Combined ACL, Packet Content ACL
Policy Actions	Mirroring, Redirect, Rate Limiting, QoS Remark
Deployment	Port-Based and VLAN-Based ACL

Security Features

Security Feature	Details
Binding Protection	IP-MAC-Port & IPv6-MAC-Port Binding (512 Entries)
Attack Prevention	DoS Defense, ARP Inspection, Source Guard
Port Security	Up to 64 MAC Addresses per Port
Authentication	802.1X, MAB, Guest VLAN, RADIUS, TACACS+
Secure Management	HTTPS, SSLv3/TLS 1.2, SSHv1/SSHv2

IPv6 Features

IPv6 Feature	Details
Dual Stack Support	IPv4/IPv6 Dual Stack
Routing	Static IPv6 Routing
Discovery Services	ND, MLD Snooping, MTU Discovery
IPv6 Applications	DHCPv6, Ping6, Tracert6, IPv6 SSH, IPv6 SSL, HTTP/HTTPS, TFTP

MIB Support

MIB Category	Details
Standard MIBs	RFC1213, RFC2233, RFC1643, RFC1493, RFC2674
Monitoring MIBs	RMON, RMON2
Authentication MIBs	RADIUS Authentication & Accounting MIBs
Diagnostic MIBs	Remote Ping & Traceroute MIB
Vendor MIBs	TP-Link Private MIB

Management Features

Omada App Management

Feature	Details
Omada App Support	Yes (Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller)

Centralized Management

Management Option	Details
Controller Support	Omada Cloud-Based Controller Omada Hardware Controller Omada Software Controller

Cloud Access & Zero-Touch Provisioning

Feature	Details
Cloud Access	Yes (Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller)
Zero-Touch Provisioning	Yes (Requires Omada Cloud-Based Controller)

Network Management Features

Management Feature	Details
Management Interfaces	Web-Based GUI, CLI via Console Port, Telnet
Network Monitoring	SNMP v1/v2c/v3, Trap/Inform, RMON (1,2,3,9 Groups)
Deployment Tools	SDM Template, DHCP/BOOTP Client, DHCP Auto Install
Network Discovery	802.1ab LLDP / LLDP-MED
System Reliability	Dual Image, Dual Configuration
Diagnostics & Monitoring	CPU Monitoring, Cable Diagnostics
Maintenance Features	Password Recovery, SNTP, System Log

Other Features

Certifications

Certification	Details
Standards Compliance	CE, FCC, RoHS

Package Contents

Included Item	Details

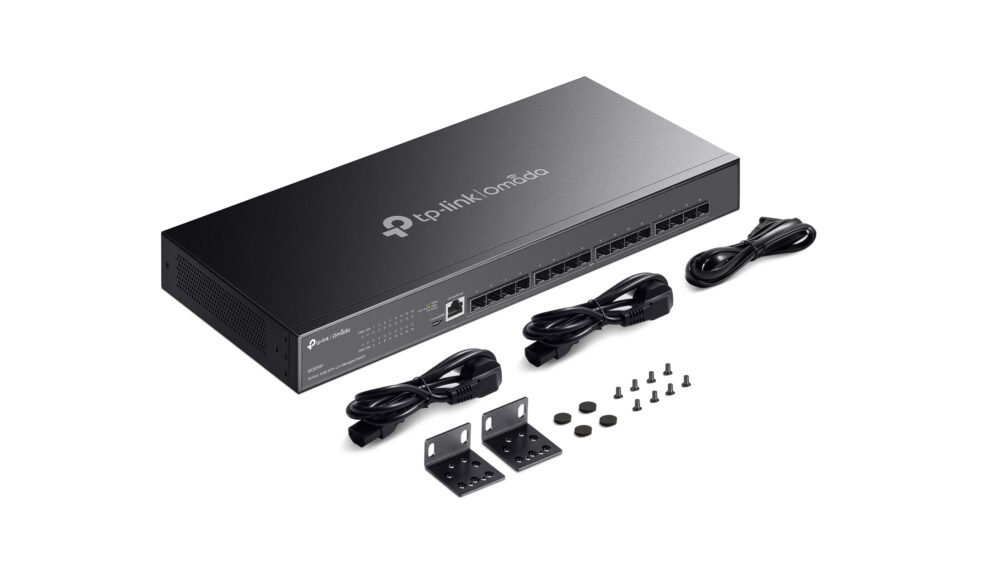

Package Contents	SX3016F Switch 2× Power Cords Quick Installation Guide Rackmount Kit Rubber Feet

System Requirements

Requirement	Details
Supported Operating Systems	Microsoft Windows 98SE, NT, 2000, XP, Vista, Windows 7/8/10/11, macOS, NetWare, UNIX, Linux

Environmental Specifications

Environmental Feature	Details
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	10%–90% RH (Non-Condensing)
Storage Humidity	5%–90% RH (Non-Condensing)

Conclusion

The TP-Link TL-SX3016F is an ideal choice for organizations looking to build a robust 10 Gigabit fiber backbone with advanced management and security capabilities. Its 16 dedicated 10G SFP+ ports, powerful Layer 2+ functionality, centralized Omada management, and redundant power design make it well-suited for enterprise networks, data centers, campus environments, and ISP deployments. Whether used as an aggregation switch or a high-speed core networking solution, the TL-SX3016F delivers the performance, reliability, and scalability required for today’s demanding network infrastructures.
